Description

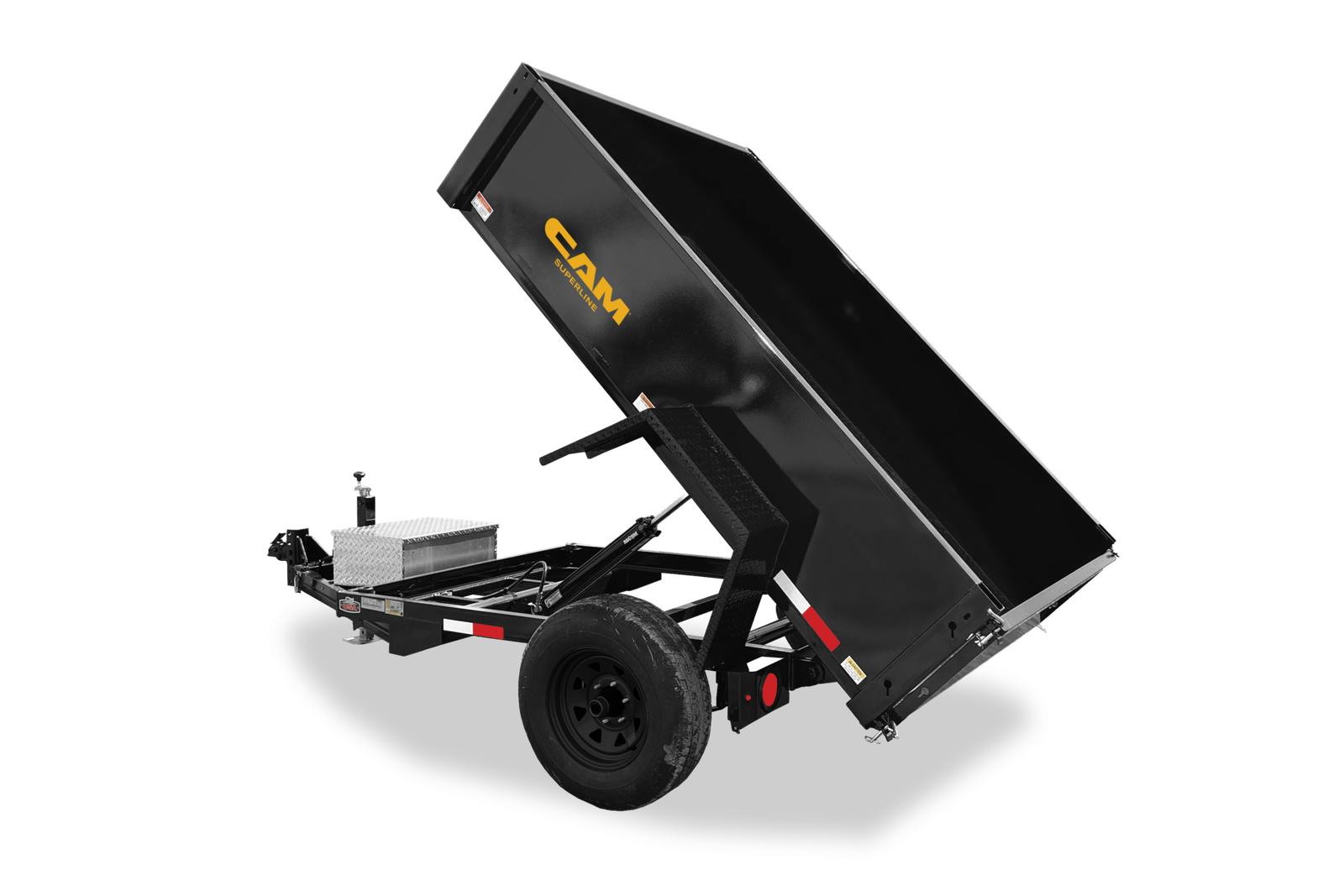

DUMP TRAILERS
HOMEOWNER DUMP
Safety Chains
Zip Breakaway System
10-Gauge Floor
14-Gauge Sides (Single Axle)
12-Gauge Sides (Tandem Axle)
Spare Tire Mount
2” x 4” Stake Pockets
Sealed Wiring Harness
Steel Lockable Pump Box
Remote Control with 20’ Cord
Three Year Warranty
5’ x 8’ SA 5K 5’ x 10’ TA 7K
Model # P5508LPDT P7510LPDT
GVWR (lb.) 5000 7000
GAWR (lb. / Axle) 5200 3500
Curb Weight 1250 1780
Payload 3750 5220
Frame 4” Channel 5” Channel
Crossmembers 3” x 2” Angle 10 Gauge, Formed
Tongue 4” Channel 5” Channel
Coupler Adjustable 2-5/16” Ball Coupler
Jack 7K Bolt-On Drop Leg Jack
Fenders Diamond Plate
Axles 5,000 lb. Greased 3,500 lb. Greased
Suspension Double Eye Suspension
Tires 225/75R15 LRD 205/75R15 LRC
Wheels 15”, 6 on 5.5 15”, 5 on 4.5
Volume Capacity 2.6 cu yd 3.2 cu yd
Lights LED Lights – Rubber Mounted
Electric Plug 7-Way SAE Plug
Finish PPG Industrial Polyurethane Paint
Overall Length 147” 172”
Bed Width Inside 60”
Bed Length Inside 96” 120”
Side Wall Height 20.5”
Deck Height 26” 26”
Coupler Height 16” – 24” 14” – 22”
Gate Double-Acting Tailgate w/ Chains
Hydraulic Cylinder One 3” x 24” One 3.5” x 36”
Hydraulic Pump 12V Single Acting
Battery 12V Deep-Cycle, DP24
Dump Angle 48
